Xnova 3215-930kv TAREQ EDITION

Artikelnummer: XN-XTS-3215-930

GTIN: 000845501106

Kategorie: XNOVA Motoren

ab Werk bestellbar
Lieferstatus: 1-2 Wochen

168.53 CHF

inkl. 8,1% MwSt. ,

Xnova

Stk

Beschreibung

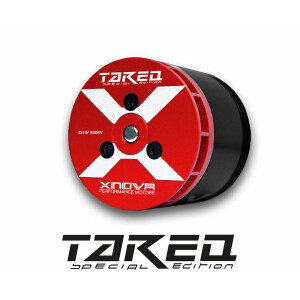

Xnova 3215-930kv TAREQ EDITION

Xnova brushless high performance outrunner motor designed for EXTREME 3D flying AND still good flight times, specially made for your SAB-Goblin 380 helicopter where highest power to weight ratio is important. We carefully optimized and tested this Motor with TAREQ ALSAADI under extreme conditions.

High qual. Neodym Mag.heat res. up to 150 degree C.
Specialized wires,heat resistance up to 250 degree C.
Precise balanced.
High performance stator metal sheet.
Very large High quality NMB bearings.
Marked leading high effiency up to 91%.
Cooler running.
Superb quality and machining of CNC parts.

Handwound single strand wire

Designed for extreme powerfully 3D and excellent flight-time , custom made for your SAB-GOBLIN-380 helicopter where highest performance to weight ratio is important. Developed with TAREQ ALSAADI

Xnovamotors specifications are real datas and not modified,, we convince you by flight-performance and not datasheets.

SHAFT TYPE SELECTION BASED ON THE ILLUSTRATION BELOW A

Slots & Poles 12n10p

Winding T YY

rpm/V 930

Volt (V) 10 / 22.2

Io(A) 1.3 / 2.1

Rm (mohm) 28 / 28

Weight (without connector) (g) 160

Body Length (no shaft) mm 40.0

Diameter (mm) 40.5

Shaft Length (mm) (Details pictures) A

Shaft Dia. (mm) 5

Mounting Holes CTC Distance (mm) 25

Mounting Screw M3x0.5

Max Eff. Curr. 21.55 / 40.80

Max Eff. 87.93 / 89.71

Kt (Nm/A 0.0103

Km (Nm/sqrt(w)) 0.0614

Max Continuous Power(Watts) 1280

Peak Continuous Power(Watts) (2 sec) 1700

Max Continuous Current(Amps) 58
