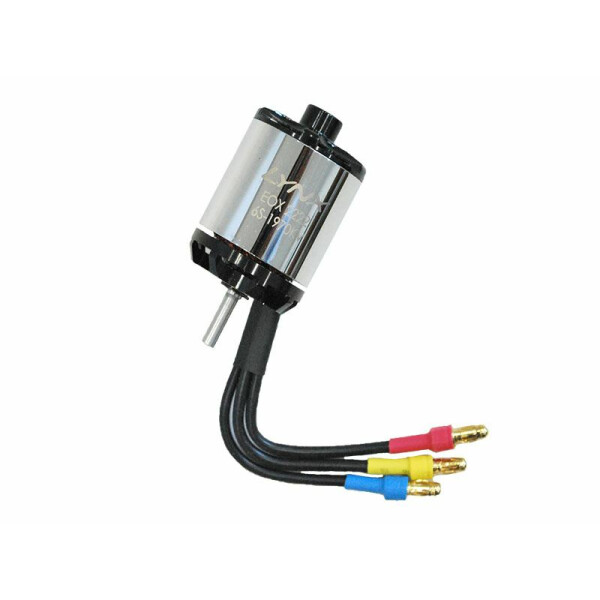

EOX Motor 2222-6S-1970KV

Artikelnummer: LX8008

Kategorie: OXY3-255

ab Werk bestellbar
Lieferstatus: 1-2 Wochen

75.79 CHF

inkl. 8,1% MwSt. , zzgl.

Lynx Heli Innovations

Stk

Beschreibung

Lynx EOX brushless motors a new generation of high power, high efficiency helicopter motors.

Our new EOX motors will open your eyes to performance.

Developed by Lynx, these motors are perhaps the ultimate helicopter upgrade.

Featuring a single wire coil assembly for the best in efficiency, power and cool running.

High temperature rating Neodymium magnet and high quality material and component graduate EOX motor by Lynx a Limit Edition.

The EOX-2222 motor is the ultimate powerhouse for 450 class heli. The 6S-1970KV edition is designed to increase the Max Output Power and work with 6S.

The high quality of all components and material used, as the choice of a special single wire rewind system grade this motor as a Limited Edition

We introduce 3 Radial Bearign shaft supportand 100% Factory fine motor balancing for the ultimate motor consistency and vibe free.

Overall dimension was designed to fit in the standard frame without touch battery or servo.

EOX 2222 is sale with standard cable connector plugs.

So the next time you want to upgrade your helicopter – think Lynx EOX!

TECHNICAL SPECIFICATION:

Motor Kv	1970KV
Max Lipo Cell	6s (22.2 MAX INPUT VOLT)
Stator Diameter	22 mm
Stator Length	22 mm
No. of Stator Arms	9
No. Magnet Poles	6
Single Wire Diam.	0.40 mm
Max Continuous Current	40A
Max Continuous Power	870W
Weight	81g - with wire and pin
Outside Diameter	28 mm
Body Length	30.3 mm
Shaft Diameter	4mm - 3 Bearign Support
Pinion Shaft Diameter	3,17 mm - With Lock Surface
Overall Shaft Length	55 mm
Motor Timing	5deg
Drive Frequency	8kHz

PACKING LIST:

1 x EOX 2222-6S-1970KV Motor with preinstalled conector plug

4 x Hex Cup Screw M3x5

4 x Hex Cup Screw M3x8
